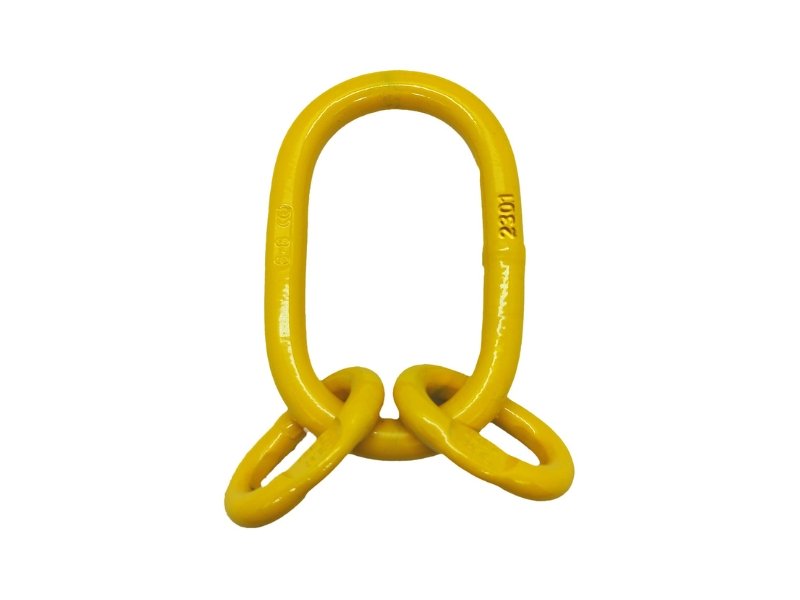

Supporting Link with Sub-elements

CÓD N/A Category

It is the accessory used as the initial element in the assembly of chain slings, wire rope slings or lifting slings.

The sustentation link with sub-elos is produced and forged in steel grade 8 – Standard ASTM A-952 and finished in yellow epoxi paint.

According to EN 1677-4 for use in chain slings and 1 or 2 branch steel wire ropes according to EN 818-4 / NBR 15516 / EN 13414-1 / NBR 13541 / NBR 15798 – Wire ropes with AF/AACI cores.

All individual elements of the Seyconel chain slings correspond to quality grade 8 according to DIN 5687-8 (EN818-2) and DIN 5691 (EN 1677)

They meet the equivalent national standards (ABNTS NBR). The accessories meet the quality criteria described by DIN EN ISO 9001.



Description

Supporting Link Features with Sub Links:

  • Start Element or End Element
  • Safety Factor 4:1
  • Certificate
  • Slings and Slings of 2 to 4 branches
  • Standard: EN1677-4 (Superaedes DIN5688-3)
Elo de Sustentação com Sub-Elos - Dimensional
Figure 1 – Dimensional
Elo de Sustentação com Sub-Elos - Tabela
Figure 2 – Table
