Description

Need a drum pick up for forklift truck?

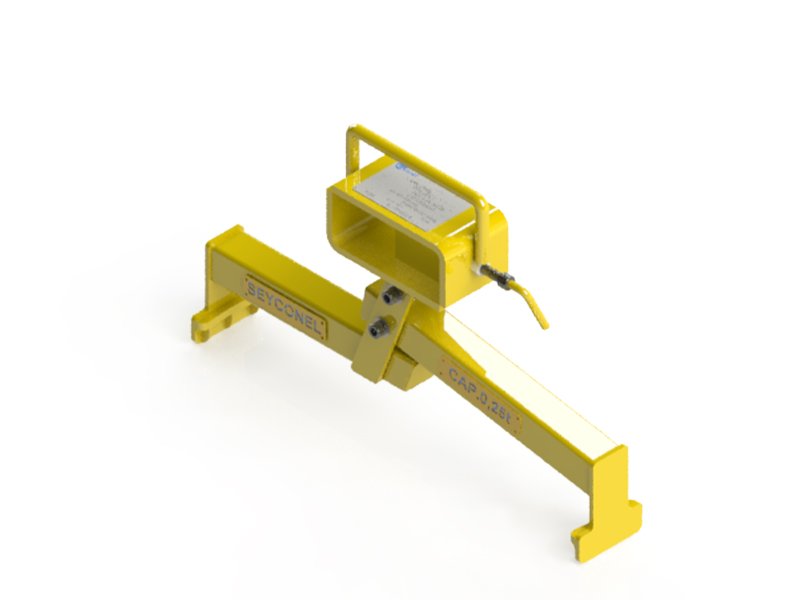

The drum catcher for forklift trucks is a device developed to solve problems of moving drums in a vertical position with the help of a forklift fork. The device works with a scissor mechanism that embraces the drum by its sides and lifts it using the force of gravity.

The forklift drum catcher is designed for 200 litre barrels (580mm diameter), so no adjustment is required for its operation. The device is also designed to be used in standard forklift truck fork sizes and is locked to the fork with its safety bolt locking system. In addition, the device features carrying handles for easy handling.

How to use the drum catcher for forklift trucks

Coupling and uncoupling the forklift truck drum catcher is simple and both require no assistance from the operator.

  • The coupling can be done in two ways: the first with the equipment coming over the drum and the second from the front, in both cases the scissor system opens by itself with the shape of the drum and closes with gravity lifting the drum.
  • When the equipment is uncoupled, the forklift arm descends, disengaging the device and then moves out, leaving the drum free.

Manufacturing and Development

Meeting the current standards of mechanical manufacturing, the device is manufactured in structural steel (ASTM A36). Welds made meet the procedures of AWS D1.1:2015 and undergo visual inspection and non-destructive testing (NDT) by liquid penetrant (LP), the standard painting is performed with epoxy paint colour safety yellow RAL 1003, but we can provide other colours and painting processes if necessary (consult sales sector). It has capacity information plates made of steel and welded to the structure and a traceability plate made of aluminum, complying with the ABNT NBR 8400, EN 13155, DIN 15402 and NR11 standards.

Safety and construction aspects

  • ABNT NBR 8400, EN 13155 and DIN 15402;
  • Safety factor 3:1;
  • Technical Databook;
  • ART (Annotation of Technical Responsibility) of Project and Manufacture;
  • Certificate of materials;
  • Maintenance plan.

Technical Details

  • Compatible with 200 litre drums (diameter 580mm);
  • Minimum working height 380 mm;
  • Device width of 620mm;
  • Capacity of 0.25 tonnes;
  • Tare weight of 20 kg;
  • Other measures consult our technical staff.

Dimensional - Pega Tambor para Empilhadeira
