Lifting Beam B

Category Tags , ,

The lifting beam is one of the most commonly used devices for lifting and handling loads. It can be used together with straps, chains, steel cables, lifting grips, magnetic lifters, among other accessories.

Very versatile, it is suitable for various types of loads, whether common loads such as: rebar bundles, plates, profiles, tubes, etc. or lifting of specific items such as: metal structures, machine chassis, etc. always providing agility and safety in lifting.

Seyconel works with two standard types of swingle tree (Type A and Type B, below), but we also develop special items according to the client’s needs.



REQUEST QUOTATION

Description

Lifting beam with six hooks at the bottom.

The weldable eyebolts are fixed on the bottom and on these, with the connecting element, the eyelet hooks with lock are fixed.

The type B balancer can be used for both straight/vertical lashing, gallows/choker and basket/basket. However, it is best suited for lifting loads that will be lifted from the top or from their ends with straight/vertical lashings and gallows/choker.

Solution for:

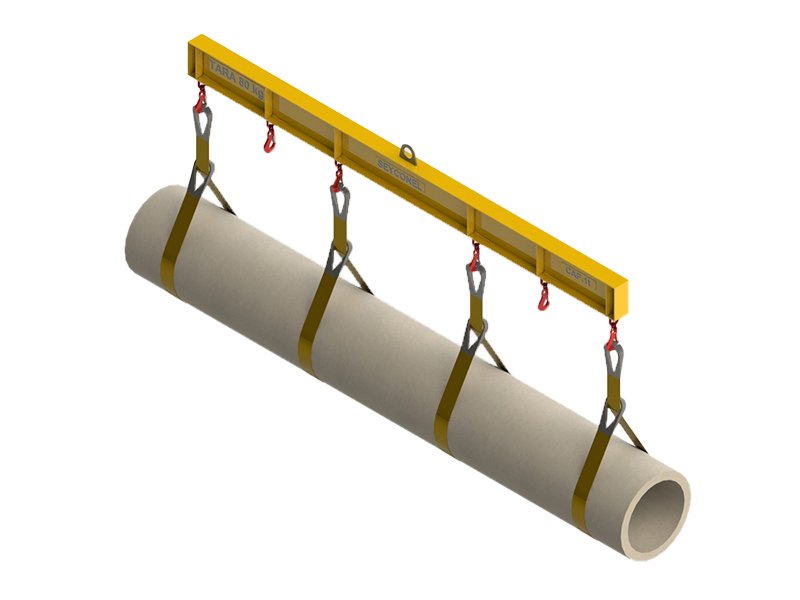

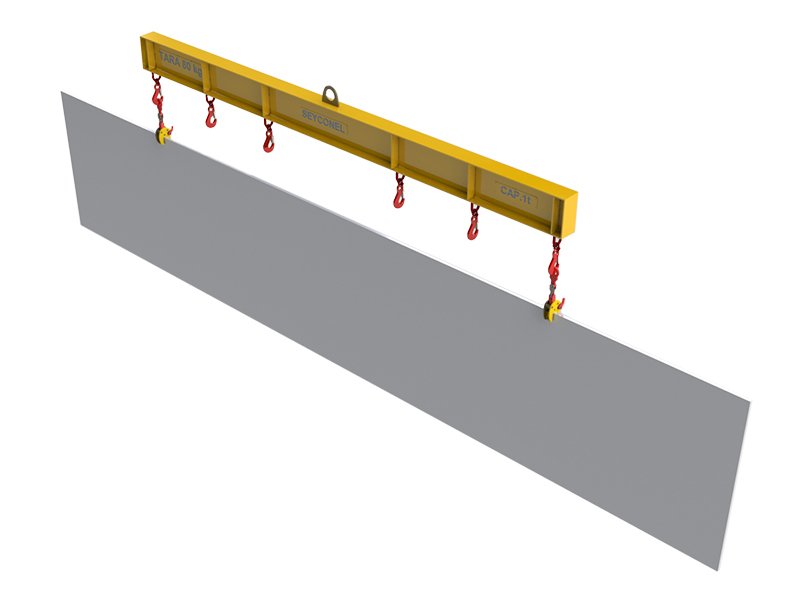

Lifting and handling of steel plates, steel tubes, rebar bundles, beams, profiles in general, among others.

Safety and construction aspects of the lifting beam:

  • ABNT NBR 8400, EN 13155 and DIN 15402;
  • Safety factor 3:1;
  • Technical Databook;
  • ART (Certificate of Technical Responsibility) of Design and/or Manufacturing/Installation;
  • Certified;
  • Maintenance plan.

Technical characteristics:

Balancim Travessão B - Dimensional
Figure 1 – Dimensional
Balancim Travessão B - Tabela
Figure 2 – Table
